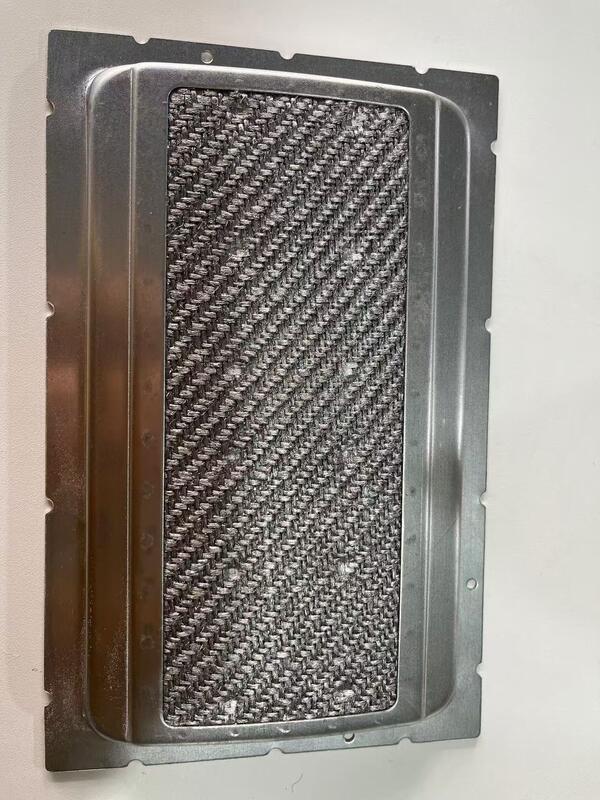

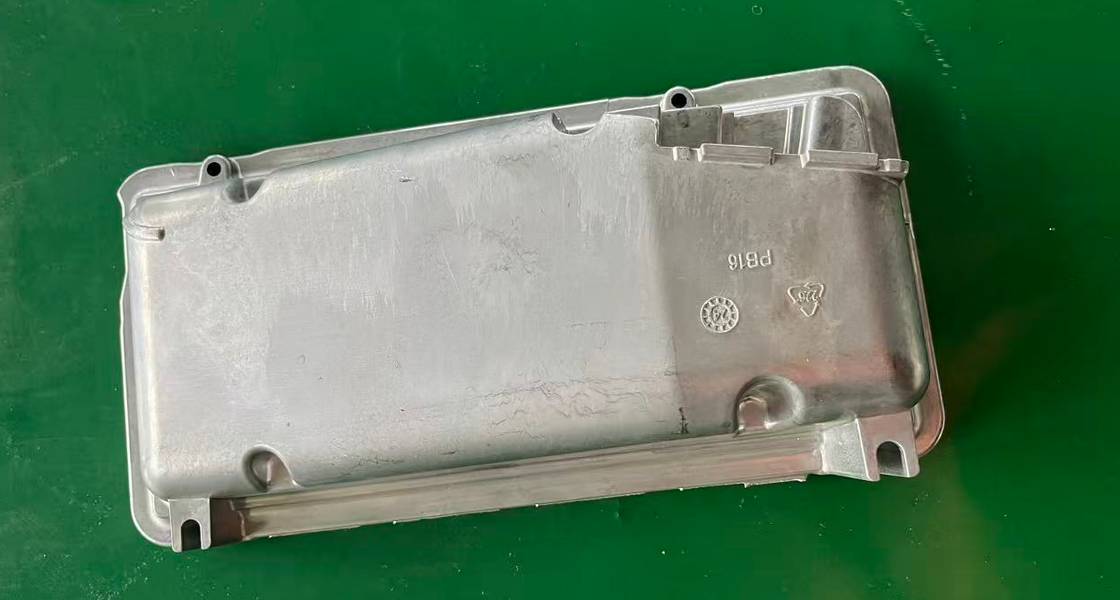

Combustion burner door burner hood Burner mounting bracket Front Door Plate Panel Pre-assembled Exchanger Door Ideal gas boilers

The door plate serves as the front sealing surface of the heat exchanger combustion chamber. It achieves an airtight seal via a high-temperature ceramic fiber gasket preventing:

• Leakage of high-temperature flue gas
• Cold air infiltration that would compromise combustion efficiency
• Corrosion of adjacent components by acidic condensate (pH 3–5)

2. Burner Mounting Interface

The door plate integrates a premix burner mounting flange, which performs these critical functions:

• Secures the fully premixed burner head
• Houses a built-in air-gas manifold (Air-Gas Manifold)
• Provides uniform air distribution channels for the premix fan
• Ensures thorough premixing of fuel gas and air before entering the combustion chamber

3. Ignition & Flame Sensing Pass-Throughs

Precision ports/openings are incorporated into the door plate:

• Electrode Port — passage for the ignition electrode (Ignition Electrode)
• Flame Sensor Port / Ionization Electrode port — for ionization-based flame monitoring to ensure safe combustion operation

4. Thermal Insulation

The interior surface of the door plate is lined with a biosoluble fiber insulation layer (Biosoluble Fiber Insulation):

• Reduces surface temperature (typically below 60°C), ensuring operator safety
• Minimizes radiant heat loss, contributing to overall unit thermal efficiency
• Withstands continuous temperatures of 1000°C or higher

5. Condensate Drainage Management

Condensing heat exchangers produce acidic condensate; the door plate is designed with:

• A condensate collection trough
• A drain outlet/port
• Directs condensate flow toward neutralization treatment systems

6. Maintenance Access Point

• Hinge or quick-release bolt design provides access to heat exchanger internals (finned tube bundles, flue passages, etc.)
• Facilitates cleaning of soot deposits, replacement of seals, and inspection of tubing corrosion

Why You Can Buy With Confidence

Summary

Small parts. But they are not guesswork.

Every gasket we sell has been made by us, fitted to our own heat exchanger, and put through rigorous testing.

You buy with confidence. You install with certainty.

Custom sizes, custom materials, and OEM branding available.

Contact us for pricing and specifications.
